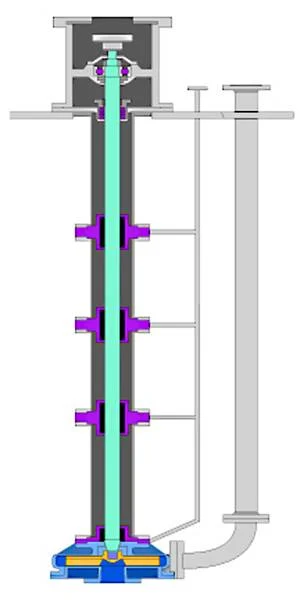

The VPL3500 is a rugged, single-stage vertical lineshaft sump pump designed to perform tough jobs reliably. It is fully compliant with the latest ISO 13709/API 610 (VS4) standards and may be custom engineered for the specific application in which it will be used.
Applications:
Dewatering and Water Supply (mining), Offsites and Waste Treatment, Volatile Organic Compounds, Slurry Transfer (mining), Slurry Processing
Industries:
Chemical Processing, Oil and Gas, Mining
Standards:
API610
Numerous Impeller and Casing Designs allows the hydraulics to be tailored to the service requirements.
Front and Rear Repelling Vanes replace erosion-prone wear rings.
Sleeve Bearing Flush System prevents solids from entering the column pipe.
Deep Sump Settings in excess of 6 m (20 ft) available.
Multiple Corrosion- and Abrasion-resistant Materials are available to suit application needs. Hard facing is avaialble on critical shaft areas.
Numerous Options allow the pump to be customized to precisely fit site and performance needs:
- Inducer
- Suction tailpipes
- Packing or mechanical seals
- Drivers (direct, V-belt, VFD, steam turbine and gear)
Typical Operating Parameters (custom designs available for limits exceeding those listed)
- Flows to 1500 m3/h (6600 gpm)
- Heads to 150 m (492 ft)
- Temperatures to 593°C (1100°F)
- Speeds to 1800 rpm
