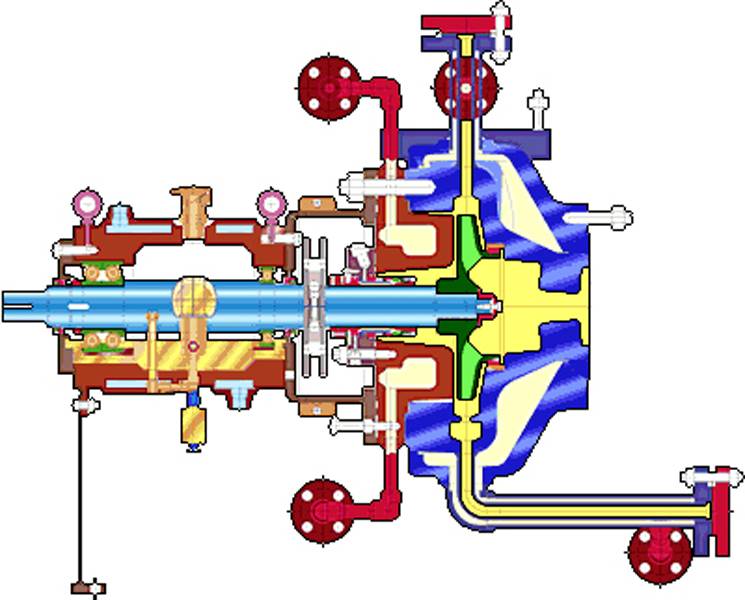

HPX1800 ISO 13709/API 610 (OH2) Jacketed Process Pump
The HPX1800 jacketed process pump is designed to reliably transfer molten sulfur and other chemicals where temperature control is critical.
- Applications:
Gas Treating and Sulfur Recovery - Industries:
Oil and Gas - Standards:
API610
Unique Integral Jacket Design completely encompasses the wet end, ensuring even heating and protection against cold spots. The integral design is more efficient and reliable than bolt-on jackets.
Casings can be fully inspected and hydrotested before the jackets are welded in place.
The Sealing System is specifically designed to prevent the solidification in the seal face area. Seal chambers are designed to accept a broad range of mechanical seal configurations.
Back Pull-out Design simplifies internal inspection and maintenance by allowing removal of the entire rotating element and bearing frame without disturbing the piping or motor.
Inducers are available for low-NPSHA applications.
Typical Operating Parameters (custom designs available for limits exceeding those listed)
- Flows to 1816 m3/h (8000 gpm)
- Heads to 213 m (700 ft)
- Pressures to 62 bar (900 psi)
- Temperatures to 371°C (700°F)
