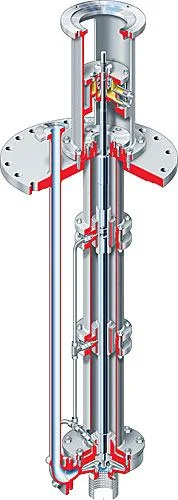

ECPJ ISO 13709/API 610 (VS4) Vertical Sump Pump

Pump Casing and Cover features metal to metal fit with fully confined, controlled compression gasket to endure proper sealing and alignment.

Dynamically Balanced Precision Cast Impeller limits vibration and ensures smooth operation over a wide flow range. An anti-rotation impeller nut positively locks the impeller to the shaft without exposing its threads to the pumped fluid.

API 682 Seal Chambers allow for installation of cartridge style single, dual unpressurized and dual pressurized mechanical seals to meet required safety and environmental requirements.

Modular Design with a range of impeller and casing designs allows the hydraulics to be tailored to the service requirements.

Thrust Pot with API 40° angular contact bearings in back-to-back arrangement enables standard (non thrust) electrical motors to be used and fulfills API 610 bearing life criteria..

Features:

• Four API 610 compliant hydraulic designs.
  • ECPJ-R
    • Closed multivane impeller with front and back rear rings
  • ECPJ-O
    • Open multivane impeller with back vanes
    • Suitable for handling soft particles like PTA applications
  • ECPJ-F
    • Free flow impeller with back vanes
    • Recommended for enahnced solids handling capability
  • ECPJ-H
    • Steam jacketed casing
    • Mandatory for liquid sulfur service
• Baseplate options
  • Rectangular
    • Non pressurized
    • Foundation or steel structure mounting
  • Circular
    • DIN 2501 PN 6 – Tank Pressures to 6 bar (87 psi)
    • ANSI 150 lbs
    • ANSI 300 lbs
  • Customer specific dimensions
• Shaft sealing options
  • V-Ring
  • Throttle bushing
  • Lip seal with grease filled stuffing box
  • Soft packing
  • API 610 compliant cartridge designs
    • Single mechanical seal, including dry running types
    • Pressurized double mechanical seal
    • Unpressurized double mechanical seal
• Additional Options
  • Inducer
  • Steam heating
  • Suction strainer
  • Bearing cooling (API Plan A)
  • Internal or external bearing flushing
  • Multiple API seal flushing, barrier fluid and quench system piping plans
  • Suction Pipe

Operating parameters

• Flows to 1000 m³/h (4000 gpm)
• Heads to 150 m (500 ft)
• Pressures to 20 bar (285 psi)
• Temperatures to 350°C (660°F)
• Column lengths to 6 m (22 ft)
• 45 sizes available
