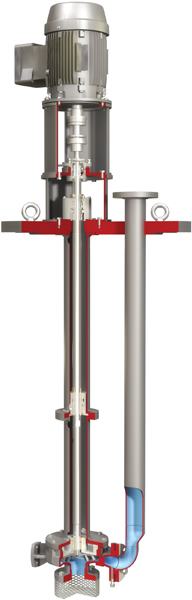

CPXV ISO
Compliant with ISO 5199, the CPXV is a vertical sump pump incorporating state-of-the-art hydraulic design for efficient and reliable service. It is highly customizable to meet a wide range of needs. And, for oil and gas installations, the CPXV is available with many ISO 13709/API 610 compliant features.
- Applications:
Automotive, Polymers, Auxiliary Services (power), Electronics, Food Processing, HVAC, OEM, Pharmaceuticals, Renewable Fuel Production, Sewage Collection and Treatment, Shipping, Slurry Processing, Water Supply and Treatment (oil and gas), Water Treatment, Solvents, Acid Transfer, Agriculture, Caustic and Chlor-alkali, Auxiliary (chemical) - Industries:
Chemical Processing, General Industries, Water Resources, Power Generation, Oil and Gas - Standards:
API610, ISO
Standard Front Vane Open-style Impeller design delivers high-efficiency performance. Reverse vane impeller is available.
Additional Column Lengths are provided up to a maximum of 10 m (32 ft).
Heavy-duty Thrust Bearings with axial adjustment made above soleplate level.
Recessed Impeller version is available for enhanced solids-handling capability.
Fully Jacketed version is available for molten sulfur applications.
Molten Salt design is also available.
Operating Parameters
- Flows to 1400 m3/h (6160 gpm)
- Heads to 250 m (820 ft)
- Pressures to 25 bar (365 psi)
- Temperatures from -40°C (-40°F) to 400°C (752°F)
CPXV and CPXRV User Instructions
71569193-e
Installation, Operation, & Maintenance Instructions for Centrifugal, modular design, vertical sump pumps (Based on C942KH001, C942KH021 and C942KH017 User Instructions)
CPX Pump Bulletin
ps-10-30-ea4
Flowserve CPX Pumps – ISO Chemical Process Pumps – CPX, CPXS, CPXM, CPXP, CPXR, CPXV
CPXV fitted with Mark 3 end suction hydraulics User Instructions
71569291
Installation, Operation, & Maintenance instructions for centrifugal, modular design, vertical sump pumps
CPXV fitted with WW/CW hydraulics User Instructions
85392698
Installation, Operation, & Maintenance instructions for Centrifugal, modular design, vertical sump pumps
