Alfa Laval’s regulating valves are used for adjusting or monitoring flow volumes and flow directions. It is specially designed for use in a broad range of metering, blending, weighing and filling system applications, they are the ideal solutions for precision control of flow rate or pressure.
Alfa Laval Valve Automations: Indication Unit, IndiTop, ThinkTop, ThinkTop Basic, ThinkTop D30, GreenTop
CPM valves maintain uniform inlet (CPMI-2) or outlet (CPMO-2) pressure in hygienic process lines for the dairy, food and beverage industries. These regulating valves provide accurate pressure control, safe and reliable performance and excellent cleanability.
Processed Foods, Dairy, Beverages, Brewery, Home & Personal Care, Chemical

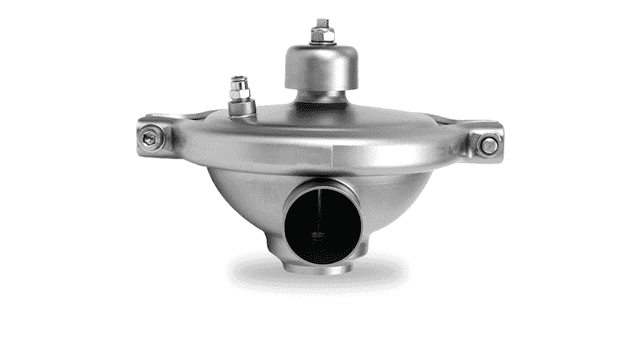

Alfa Laval Constant Pressure Modulating (CPM) valves are pneumatic regulating valves that maintain a constant inlet or outlet pressure in hygienic process lines. Thanks to a quick response diaphragm, these compact valves immediately react to any change in product pressure, adjusting position to keep the pressure at preset values.
CPM valves feature a self-draining design and crevice-free, bowl-shaped valve body with welded valve seat to enable thorough cleaning, thus eliminating potential entrapment areas. The unique diaphragm with PTFE on the lower diaphragm also contributes to excellent cleanability.
Alfa Laval offers three types of CPM valves. Modular design enables the use of different plug sizes and different flow rates between 0.5 and 110 m3/h provide great operational flexibility.
Upon request, some CPM valves can be provided as ATEX-approved valves (group 2 category 3 D&G applications) for use in potentially explosive areas.
Alfa Laval CPM valves meet most standards requested in the dairy, food and beverage, and personal care industries. Aseptic version
Designed to maintain a constant pressure at the valve inlet or outlet, using different plug sizes and different Kv values.
The diaphragm in the valve enables it under aseptic conditions to react effectively to any changes in product pressure by shifting position against a constant air pressure.
The CPM valve is often used upstream of aseptic filling and bottling machines.
There are two different types of construction for Alfa Laval Constant Pressure Modulating valves.
The CPMI-2 and CPMO-2 valves consist of a valve body with valve seat, cover, a valve plug with a special diaphragm and a clamp. The diaphragm consists of two flexible EPDM diaphragms supported by 12 stainless steel sectors in between them. The cover and the valve body are clamped together. The valve body and the seat are welded together.
The CPM-I-D60 consists of a CPMI-2 valve with additional piping.
The CPMI-2, CPMO-2 and CPM-I-D60 valves are controlled remotely by means of compressed air. The valves operate without a transmitter in the product line and only require a pressure-regulating valve for the compressed air and a pressure gauge in the product line (see below).
Where modulating back pressure is required (i.e., to maintain a fixed flow in and out of the CPM valve), the air supply to the valve can be provided by an I/P converter (typically 3-15 psi) and a booster valve. The product pressure dictates the pressure ratio of the booster valve.
A diaphragm reacts immediately to any alteration of the product pressure and changes position so that the preset pressure is maintained.
Inlet side: The Constant Pressure Modulating Inlet (CPMI-2) valves and the Constant Pressure Modulating Inlet D60 (CPM-I-D60) valves maintain constant pressure in the process line at the inlet side of the valve. CPMI-2 and CPM-I-D60 open when product pressure increases and close when product pressure decreases. These are often installed downstream from separators and heat exchangers, and may also be used as overflow valves.
Outlet side: The Constant Pressure Modulating Outlet (CPMO-2) valves maintain constant pressure in the process line at the outlet side of the valve. CPMO-2 closes when product pressure increases and opens when product pressure decreases (see illustration below). It is often installed upstream from pasteurizers, separators and filler systems of filtration units.
Alfa Laval Constant Pressure Modulating Inlet (CPMI) valves are sanitary constant-pressure valves for use in stainless steel pipe systems. The CPMI-2 valve maintains a constant pressure in the process line at the inlet side of the valve. Typical applications of this valve are after separators, heat exchangers, and as an overflow valve.
The CPMI-2 is remotely controlled by means of compressed air. The valve operates without a transmitter in the product line and requires only a pressure regulating valve for the compressed air and a pressure gauge in the product line.
A diaphragm/valve plug system reacts immediately to any alteration of the product pressure and changes position so that the preset pressure is maintained. CPMI-2 opens at increasing product pressure and vice versa.
The CPMI-2 consists of a valve body with valve seat, cover, a valve plug with a diaphragm unit, and a clamp. The diaphragm unit consists of a stainless steel disc—which is divided into sector—and flexible diaphragms that are placed on each side of the sectors. The cover and the valve body are clamped together. The valve body and the seat are welded together. The CPMI-2 meets 3-A standards.
| Product Wetted Steel Parts | 316L |
| Other Steel Parts | 304 |
| Lower Diaphragm | PTFE covered EPDM rubber (standard) Solid PTFE |
| Upper Diaphragm | Nitrile (NBR) standard PTFE covered EPDM rubber Solid PTFE |
| O-ring | Buna (standard) Fluorinated rubber (FPM) covered EPDM rubber |
| Finish | 32 Ra |
| Max Product Pressure | 145 psi |
| Min Product Pressure | 0 psi |
| Max Product Viscosity | 500 cps |
| Temperature Range | 14 – 203°F |
| Temperature Range with PTFE/EPDM Upper Diaphragm | 14 – 286°F (higher on request) |
| Air Pressure | 0 – 116 psi |
| Air Connections | R ¼ inch (BSP), internal thread |
The Alfa Laval CPMO-2 (Constant Pressure Modulating Outlet) is a sanitary constant pressure valve for use in stainless steel pipe systems. The CPMO-2 maintains a constant pressure in the process line at the outlet side of the valve.
A CPMO-2 valve is typically used before filling or bottling machines and in other applications where constant pressure must be maintained.
CPMO-2 is remotely controlled by means of compressed air. The valve operates without a transmitter in the product line and requires only a pressure regulating valve for the compressed air and a pressure gauge in the product line.
A diaphragm/valve plug system reacts immediately to any alteration of the product pressure and changes position so that the preset pressure is maintained. CPMO-2 closes at increasing product pressure and vice versa.
The CPMO-2 consists of a valve body with valve seat, cover, a valve plug with a diaphragm unit, and a clamp. The diaphragm unit consists of a stainless steel disc—which is divided into sectors—and flexible diaphragms that are placed on each side of the sectors. The cover and the valve body are clamped together. The valve body and the seat are welded together. The CPMO-2 meets 3-A standards.
| Product Wetted Steel Parts | 316L |
| Other Steel Parts | 304 |
| Lower Diaphragm | PTFE covered EPDM rubber (standard) Solid PTFE (optional) |
| Upper Diaphragm | Nitrile (NBR) standard PTFE covered EPDM rubber (optional) Solid PTFE (optional) |
| O-ring | Buna (standard) Fluorinated rubber (FPM) covered EPDM rubber (optional) |
| Finish | 32 Ra |
| Max Product Pressure | 145 psi |
| Min Product Pressure | 0 psi |
| Max Product Viscosity | 500 cps |
| Temperature Range | 14 – 203°F |
| Temperature Range with PTFE/EPDM Upper Diaphragm | 14 – 286°F (higher on request) |
| Air pressure | 0 – 116 psi |
| Air connections | R ¼ inch (BSP), internal thread |
