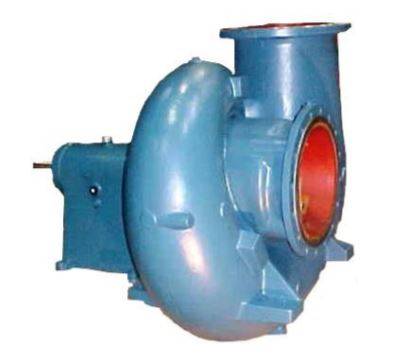

[Bare Shaft] Series SPL

The SPL is a horizontal, single stage, end suction pump flanged to a bearing pedestal. The volute casing has integral support feet and is fitted with a replaceable wear ring. Wearing parts can be removed from the drive end without disturbing the volute casing and pipe work. An open impeller is fitted as standard but a closed impeller for pumping liquids containing abrasive solids can be fitted if required.

The industrial standard pumps have been developed in response to customer requirements for pumps that meet EN 733/DIN 24255 and ISO 9908. Some designs meet EN 22858/DIN 24256. They are available in a number of different materials and are suitable for a wide range of industrial applications, offering high reliability, high efficiency, low NPSH, resulting in low operating costs.

ABS offers SIHI’s Industrial Standard Pumps in Bare Shaft design, in Compact design and in Inline design.
