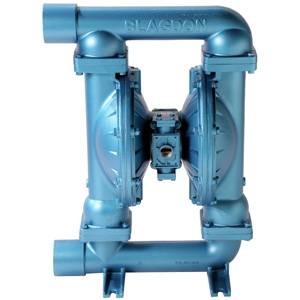

B75 Metallic Pump

Maximum Delivery	889 ltrs/min (234.8 gal/min)
Max. Working Pressure	8.6 bar (125 PSI)
Max. Solid Particle Size	10 mm. (0.4 in.)
Air Inlet	3/4 in. NPT
Temperature Limits	Determined by Elastomers
Suction Lift (Dry)	4 metres (13.1 feet)
Fluid Inlet / Outlet	3 in. BSP Tapered (End Ported) DIN Flanged (Center Ported)
Installation	Surface Mounted
Accessories Included	Exhaust Air Silencer
Shipping Weight	53.5 kg. (117.7 lbs) Aluminium 90 kg. (198 lbs) Cast Iron / Aluminium 90 kg. (198 lbs) Stainless Steel / Aluminium
Shipping Dimensions	720 x 350 x 900 mm 28.3 in. x 13.8 in. x 35.4 in.
