| Maximum Delivery | 530 ltrs/min (140 gal/min) |
| Max. Working Pressure | 8.6 bar (125 PSI) |
| Max. Solid Particle Size | 6 mm. (0.24 in.) |
| Air Inlet | 3/4 in. NPT |
| Temperature Limits | Determined by Elastomers |
| Suction Lift (Dry) | 6.1 metres (20 feet) |
| Suction Lift (Wet) | 7.6 metres (24.9 feet) |
| Fluid Inlet / Outlet | 2 in. ANSI #150 Flanged RF |
| Installation | Surface mounted |
| Accessories Included | Exhaust Air Silencer |
| Shipping Weight | 39.5 kg. (87.1 lbs) polypropylene / aluminum
50.5 kg. (111.3 lbs) PVDF / aluminum
50.5 kg. (111.3 lbs) polypropylene / stainless steel
70 kg. (154.3 lbs) PVDF / stainless steel |
| Shipping Dimensions | 630 x 380 x 670 mm
24.8 in. x 15.0 in. x 26.4 in. |
B50 Non-Metallic Pump General Assembly
B50 Non-Metallic Pump Performance Curves
B50_X50_Non-Metallic_manual-rev0911
B50_Non-Metallic_datasheet

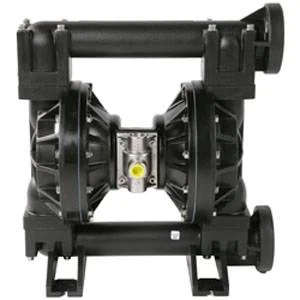

Upgrade to the B50 Non-Metallic Pump for superior chemical handling and corrosion resistance. Built for industrial efficiency, it ensures long-lasting performance. Contact us today to explore its capabilities and find the right fit for your needs!
