Vortex Shear Mixer
The Alfa Laval Vortex Shear Mixer is a unique, high-performance Venturi eductor designed specifically for demanding slurry mixing applications. These encompass oil and gas drilling fluid amalgamation, construction material fabrication, chemical synthesis, mining, sugar solution amalgamation, brine amalgamation, cosmetics, paint pigment amalgamation, metal processing, and plastic manufacturing, among others.
The Alfa Laval Vortex Shear Mixer is devoid of motorised or moving parts. It employs vacuum and dynamic shear generated by its distinctive nozzle to rapidly inject and amalgamate chemicals into fluids. It surpasses conventional Venturi eductors with superior loading rates and improved mixing, while also exhibiting greater resistance to clogging and operational interruptions.
Related Industries:
Petrochemicals, Biofuels, Oil and Gas
- Simple robust design, no moving parts
- Low maintenance with easy to replace internals
- Highest product addition rate of any venturi mud hopper
- Easily handles difficult to mix mud additives
- Reduces product waste
- Highly customizable to fit specific rig applications
- High quality materials of construction
The mixing of chemical additives into drilling mud is critical process that can have a significant impact on the overall time and cost of drilling a well. However, mud mixing commonly receives less attention than other drilling processes because of its perceived simplicity.
This Vortex Shear Mixer can often lead to the selection of low cost, low tech, outdated mud mixing equipment that does not promote additive waste reduction, and is not fully capable of keeping pace with other drilling processes on today’s modern drilling rig. The Alfa Laval Vortex Shear Mixer is an advanced, yet simple, mixer that vastly outperforms traditional mud mixing hoppers. The shear mixer is nearly impossible to plug and has the highest additive loading rate of any venturi style mixer.
Vortex Shear Mixer also features a number of exclusive advantages that lead to abundant cost savings related to both chemical additives and time, including:
- Dynamic shearing of chemical additives into the fluid
- Pre-wets difficult to mix additives such as bentonite or polymers
- Prevents the formation of fish eyes or microgels
- Equipped with easily replaceable inserts
Basic equipment

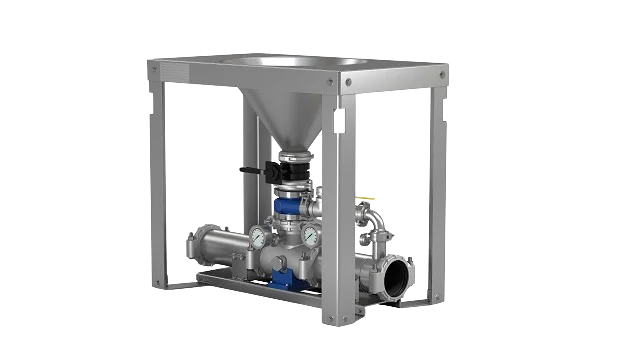

The Alfa Laval Vortex Shear Mixer consists of a single or dual suction port Lobestar mixing eductor with a radial premixer. The basic configuration includes a heavy duty, stainless steel, parabolic, table top hopper with support legs. The entire assembly is mounted on a skid base for easy transport and placement, and the standard inlet and discharge connections are grooved end piping with grooved style couplings. The typical shear mixer size for drilling applications is 6” or 4” and is dependent on the rig mud system volumes or the desired mud processing rate.
Contact us today to learn how the Vortex Shear Mixer can enhance your mixing processes in food, beverage, and pharmaceutical industries. We’re here to help you find the best solution.
