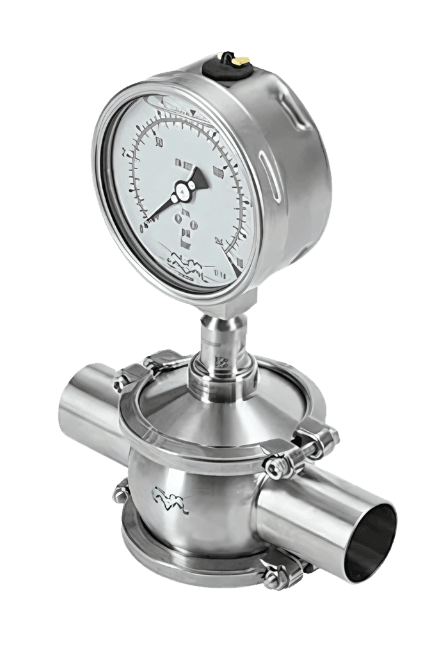

The Alfa Laval Unique Flexbody is a versatile in-line instrument housing intended for sanitary fluid processing lines. It is intended to be easily integrated into any piping system and to improve monitoring and control. Each in-line housing can hold up to two control or measurement instruments, or sight lenses. The unique Flexbody is simple to operate, maintain, and clean thanks to its no-dead-zone design.
Alfa Laval’s Unique Flexbody in-line instrument housings can increase the efficiency and profitability of sanitary fluid processing operations. The Unique Flexbody is an excellent solution for monitoring crucial parameters like temperature, pressure, and conductivity in the dairy, food, beverage, and brewery industries. Install the enclosure in any pipeline system and use the easy clamp connections to position control and measurement instruments or sight glasses.
Alfa Laval Unique Flexbody Application
Unique Flexbody is the epitome of simplicity, being both compact and modular. Connections are unaffected by pipe widths or process factors; only two connection sizes accommodate all instruments and sight glasses. The instrumentation is replaceable and can be easily removed for calibration or replacement without welding.
The Unique Flexbody in-line housing provides reliable, hygienic process connections that are fully drainable and cleanable using Cleaning-in-Place (CIP) and Sterilization-in-Place (SIP) procedures. No dismantling is necessary. Furthermore, instrumentation access ensures a flawless seal with no gaps or air pockets, reducing the danger of microbiological contamination.
Related Industries :
- Dairy Processing
- Food Processing
- Home Care
- Personal Care
- High flexibility
- Hygienic design
- Wide instrument range

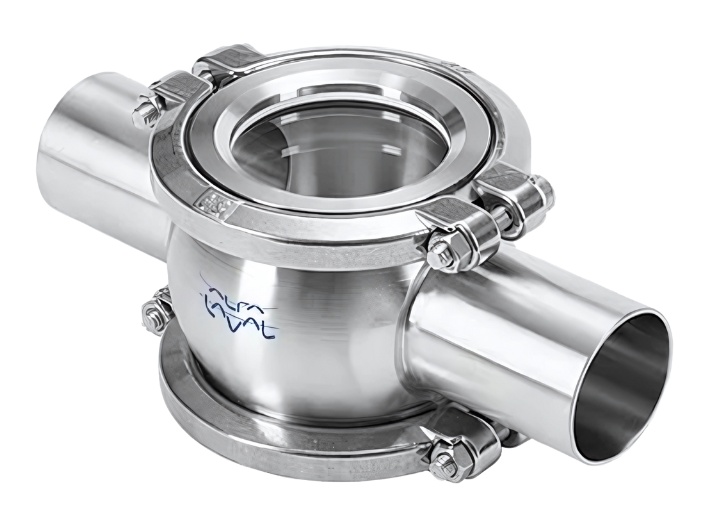

The Unique Flexbody is a hygienic stainless steel in-line housing that can be welded into any piping system with various pipe diameters. It has two openings for two instruments or sight glasses to be used simultaneously. When not in use, hygienic blind caps can seal process connections. Choose the right in-line instrumentation and/or sight glass body from standard sizes.

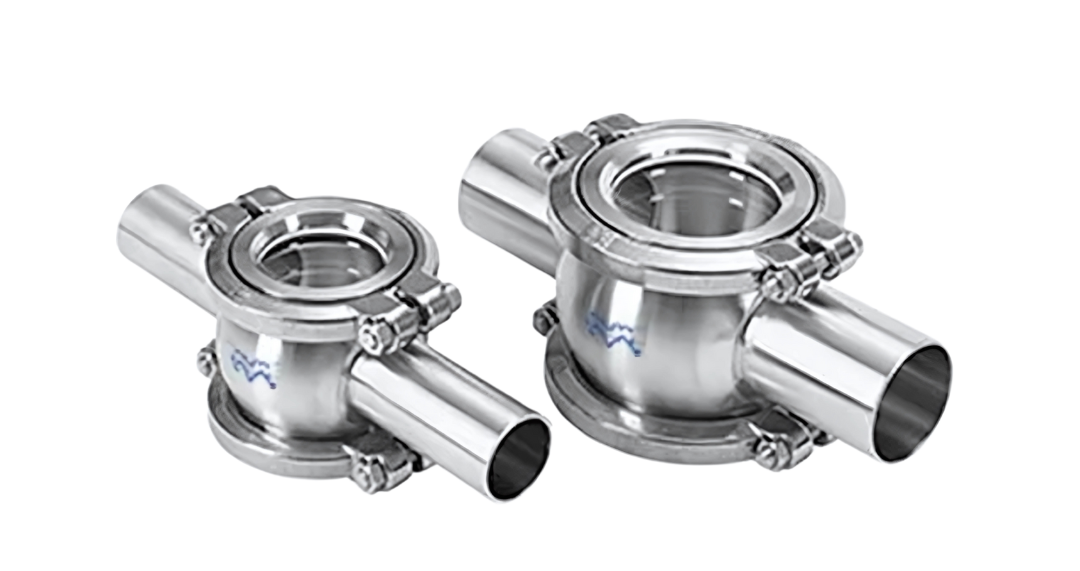

Choose the right in-line instrumentation and/or sight glass body from these standard sizes.
EN 10357-A
- Process connection F: DN 25,
- Process connection N: DN40, 50, 65, 80, 100, 125, 150
ISO 2037
- Process connection: F: ISO 25,
- Process connection: N: ISO 38, 51, 63,5, 76,1, 101,6
ASME BPE
- Process connection: F: 1”
- Process connection: N: 1½”, 2”, 2½”, 3”, 4”
- Housing: 1.4404 / AISI316L
- Elastomer: Standard EPDM, FPM optional
- Internal surface finish: Ra < 0.8 µm
- Sight glass: Borosilicate glass
Options
