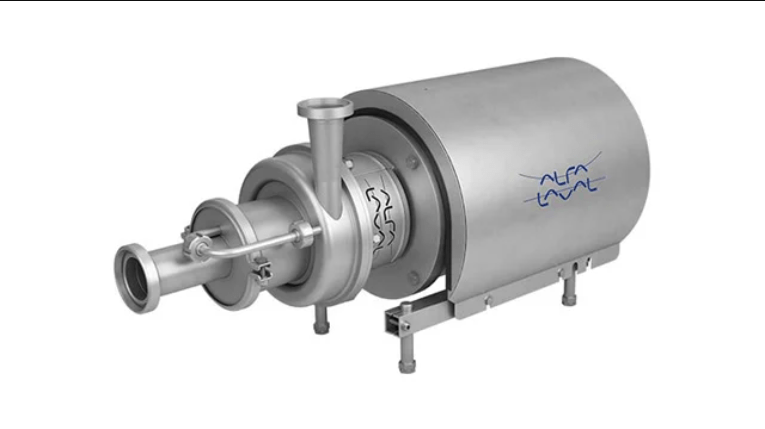

Alfa Laval LKH Prime, based on the market-leading Alfa Laval LKH pump, is an efficient, adaptable, and hygienic self-priming pump that meets the most severe standards in the food, dairy, beverage, home, and personal care industries through the use of air-screw technology and sophisticated design. It is mostly used for cleaning-in-place chores with entrained air, although it can also pump product, lowering capital investment. There is now an additional model size that provides an extended performance envelope.
Related Industries:
- Beverage Processing
- Biotechnology
- Dairy Processing
- Food Processing
- Home Care
- Personal Care
Alfa Laval LKH Prime Application
The LKH Prime pump is a hygienic pump suitable for food, dairy, beverage, and home-personal care industries. It is ideal for tank emptying and CIP return applications, and can also be used as a product pump. Available in three sizes, it can handle capacities up to 100 m3/h.
Benefit
- Utilizes advanced air-screw technology, optimized impeller, and casing geometry for quiet, efficient operation.
- Reduces energy consumption and CO2 footprint, meeting stringent standards and hygienic requirements.
- Premium pump platform with superior performance, high quality, and reliability.
- Versatile, designed for Cleaning-in-Place duties and pumping product, potentially reducing capital investment.
- Meets global standards for quiet operation and hygienic requirements.
- Easy to maintain, with shared parts with other pumps.
- Trusted supplier with a history of excellence dating back to 1883.
- Adds to a list of high-performance equipment minimizing energy consumption.
TECHNICAL DATA
Materials
- Product wetted steel parts: W. 1.4404 (316L)
- Other steel parts: Stainless steel
- Inside surface finish: Standard blasted
- Product wetted elastomers: EPDM
- Rotary seal face: Carbon
- Stationary seal face: Silicon Carbide
Motor
Foot-flanged motor according to the IEC metric standard, 2 poles = 3000/3600 rpm at 50/60 Hz, IP 55 (with drain hole with labyrinth plug), insulation class F.
The LKH prime pump is a standard design with steel components, including the pump casing, impeller, airscrew, front cover, recirculation pipe and backplate. It features a compression coupling for precision alignment and a semi-open impeller with a special vane design for efficient product handling. The pump is equipped with a single mechanical shaft seal or a double mechanical shaft seal, making maintenance fast, easy and inexpensive. The balanced design minimizes seal opening during pressure shocks.
The pump operates by rotating the airscrew, forming a continuous liquid ring within the canister and directing air pockets through the canister into the suction stage of the impeller. The liquid is returned via the recirculation pipe to maintain the ring. When no air is present, the canister and recirculation loop are empty, allowing the pump to function as a traditional pump.
