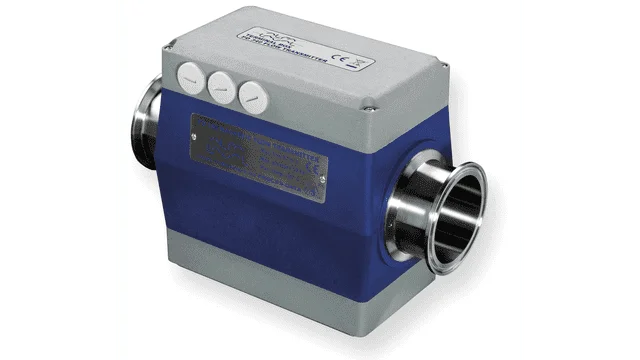

Alfa Laval flow transmitters are electromagnetic precision meters used to measure the volumetric flow rate of electrically conductive liquids. Hygienically designed, these are excellent choices for use in the dairy, food and biopharma industries.
Food and beverage, Home and Personal care
Alfa Laval flow transmitters are bi-directional electromagnetic precision meters used to provide accurate process flow measurement of electrically conductive liquids. They are especially suitable for installations where solid particles are present in the liquid. With no moving parts and no pressure drop, these flow transmitters provide high accuracy, excellent long-term stability and performance.
Authorized to carry the 3-A symbol, Alfa Laval flow transmitters feature a sturdy waterproof design. Other hygienic features, such as the (PFA) Teflon coating on the interior of the metering tube and completely embedded, hermetically sealed electronics, contribute to long service life of these magnetic inductive flow transmitters.
Designed for tight mounting positions, standard Alfa Laval flow transmitters are delivered with pre-set factory pulse output signals to facilitate installation. The standard output is a pulse signal (0 to 1000 Hz) with a resolution of either 0.01 or 0.1 liter/pulse. Analogue 4-20 mA output and advanced display-enabling features are available as options.
Terminals for electrical connection are marked with both number and function; all cables can be threaded through three PG-11 cable glands.
The Alfa Laval flow transmitter is a magnetic inductive flow transmitter that operates according to Faraday’s law of electromagnetic induction. It consists of a metering pipe and two magnetic coils. When a current is applied to the coils, a magnetic field is produced at right angles to the metering pipe.
The liquid to be measured flows through the metering pipe perpendicular to the magnetic field. It acts as a conductor and induces an electrical voltage. Two sensing electrodes mounted in the metering pipe measure this voltage. The voltage is proportional to the average flow velocity and therefore accurately reflects the volume of the liquid flowing through the tube.
The Alfa Laval flow transmitter uses a square measurement chamber. The shape of the measurement chamber significantly reduces the influence of viscosity, type of liquid, and flow profiles. It also eliminates any need for recalibration when changing product, for instance, from milk to water.
The microprocessor in the transmitter controls the current generator to maintain a constant magnetic field. The voltage across the electrodes is amplified and converted to a digital value from which the microprocessor calculates the volume of the liquid flowing through the tube.
The Alfa Laval Flow Transmitter is designed to fulfill the demands of hygienic and pharmaceutical production. Amongst others it is suitable for flow measurement in Food, Beverage, Dairy and Biopharm industries. The main features are:
Accuracy : ±0,02 % of FS (testbench) <±0,2 % of FS (working conditions)
Repeatability accuracy : Max 0.5* accuracy
Media conductivity : Min 5 µS/cm
0 to 8 m3/h (2113 GPH), (connection: DN25 (ISO2852))
0 to 20 m3/h (5284 GPH), (connection: DN38 (ISO2852))
0 to 40 m3/h (10568 GPH), (connection: DN51 (ISO2852))
0 to 80 m3/h (21136 GPH), (connection: DN63 (ISO2852))
0 to 120 m3/h (31704 GPH), (connection: DN76 (ISO2852))
0 to 200 m3/h (52840 GPH), (connection: DN102 (ISO2852))
TE67A1XXXXXXXX: 0.01 litre/pulse
TE67A2XXXXXXXX: 0.01 litre/pulse
TE67A3XXXXXXXX: 0.10 litre/pulse
TE67A4XXXXXXXX: 0.10 litre/pulse
TE67A5XXXXXXXX: 0.10 litre/pulse
TE67A6XXXXXXXX: 0.10 litre/pulse
Protection class: . . . . . . . . . IP67
Max media pressure: . . . . . . . 10 bar
Power supply: . . . . . . . . . . . 24 V AC/DC (0.25A)
Electrical connection: . . . . . . Pg11 cable gland
Puls output: . . . . . . . . . . . . 0.2 sec.
4-20 mA: . . . . . . . . . . . . . . 1 sec.
Puls output: . . . . . . . . . . . . (0 to 1000Hz) , 4-20 mA (option),
Profibus DP (option)
Wetted parts: . . . . . . . . . . . . . . . . . AISI 316 and PFA
Housing: . . . . . . . . . . . . . . . . . . . . Noryl Operating temperature
Wetted parts: . . . . . . . . . . . . . . . . . -30 to 115°C
Electronics range: . . . . . . . . . . . . . . -10 to 50°C
Flow transmitter: . . . . . . . . . . . . . . . 5 kg. (type TE67A6: 10 kg.)
TE67A1XXXXXXXX: connection: clamp DN25 (ISO2852)
TE67A2XXXXXXXX: connection: clamp DN38 (ISO2852)
TE67A3XXXXXXXX: connection: clamp DN51 (ISO2852)
TE67A4XXXXXXXX: connection: clamp DN63 (ISO2852)
TE67A5XXXXXXXX: connection: clamp DN76 (ISO2852)
TE67A6XXXXXXXX: connection: clamp DN102 (ISO2852)
The Alfa Laval Flow Transmitter is pre-setup from factory ready for installation and has as standard integrated automatic zero point adjustment. As an option The Alfa Laval Flow Transmitter can be delivered with display giving access to advanced features such as integrated temperature compensation through external pt100 sensor, PI regulator and for low flows a linearization function further optimizing the accuracy at low flows.
The Alfa Laval Flow Transmitter is an electromagnetic precision meter for volumetric measurement of liquids that are electrically conductive. The transmitter can be used in applications where a hygienic design is required and the rugged construction of the transmitter makes it suitable for installations where solid particles are present in the liquid. The standard version is delivered pre-setup making installation quick and easy. The output signal is as standard a pulse-signal (0 to 1000 Hz) with a resolution of either 0,01 or 0,1 ltr/pulse. As an option the
Flow Transmitter can be delivered with analogue 4-20 mA output or profibus DP. A display can be attached enabling advanced features, such as scaling and changing of resolution. The metering tube is coated with PFA on the inside and is fitted with clamp connections. The sensitive electronic is completely embedded and consequently hermetically sealed. The flow transmitter is water proof with protection class IP 67. The terminals for electrical connection are marked with both number and function and cable access is done through 3 PG-11 cable glands.
The Alfa Laval FlowTransmitter consists of a metering pipe and two magnetic coils. When a current is applied to the coils a magnetic field is produced at right angles to the metering pipe. With a conductive liquid flowing through the metering pipe an electrical voltage is induced and measured by two electrodes mounted in the metering pipe. This voltage is proportional to the average velocity of flow and therefore to the volume flowing.
The Alfa Laval Flow Transmitter utilizes a square measurement chamber.
The shape of the measurement chamber significantly reduces the influence of viscosity, type of liquid, and flow profiles and eliminates any need for recalibration when changing product for instance from milk to water. The microprocessor in the transmitter controls the current generator keeping the magnetic field constant. The voltage across the electrodes is amplified and converted to a digital value from which the microprocessor calculates the liquid flow.
