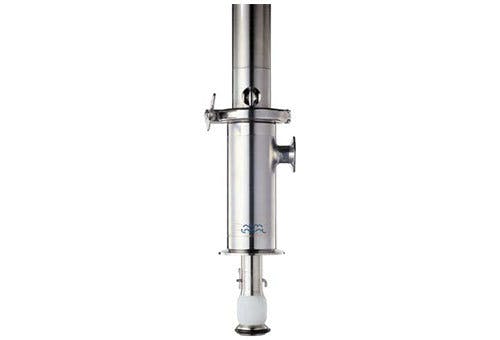

Toftejorg Sanimidget Retractor (Alfa Laval SaniMidget Retractor Retractable Rotary Spray Head)

Alfa Laval Toftejorg Sanimidget Retractor

The Toftejorg SaniMidget retractor is installed in places where fully automated and validated cleaning can assure higher productivity, due to less cleaning time in spray drying applications within the food, ingredients, and pharmaceutical industries. Larger ducts, channels, cyclones, chambers, complexed reactors, and vent lines can be cleaned to the highest standards, with no manual or semi-automated interference, avoiding any product carryover or hazardous incidents.

Related Industries:

Processed Foods, Dairy, Beverages, Brewery, Home & Personal Care, Pharmaceutical, Biotech, Chemical

Working Principle

The Toftejorg SaniMidget retractor is available with two styles of retracting mechanisms:

Pneumatic driven, which uses air pressure to extend and retract the cleaning head.
Media driven, which uses the pressure of the cleaning media to extend the cleaning head and an integrated spring to retract it.

The rotary spray head creates a fan of fluid in a swirling pattern. The distribution pattern of the cleaner head generates a vibrating impact as well as cascading flow coverage of all internal surfaces of the tank.

Application

Standard Design

The Toftejorg SaniMidget retractor is available in three stroke lengths: 100 mm, 150 mm, and 250 mm, in either pneumatic-driven or media-driven versions.

Technical Data

Lubricant	With cleaning media	Self-lubricating
Wetting Radius	Max.	11.5 ft
Impact Cleaning Radius	Max. effective	5.5 ft
Air Quality	Clean, filtered max.	Max. 0.0016 in
	Dry, dew point max.	Max. 50°F
Pressure: Air/Spring and Air/Air	Working pressure	15 – 72 psi
	Recommended pressure	43 psi
	Air supply pressure	29 – 72 psi
Pressure: Media/Spring	Working pressure	36 – 72 psi
	Recommended pressure	43 psi
Certificates	Available upon request	2.2 or 3.1 material certificate or ATEX

Installation

Please contact Central States Industrial (CSI) at 800.654.5635 for installation of the tank cleaning machine.

Working Principle

The Toftejorg SaniMidget retractor is available with two styles of retracting mechanisms:

Pneumatic driven, which uses air pressure to extend and retract the cleaning head.
Media driven, which uses the pressure of the cleaning media to extend the cleaning head and an integrated spring to retract it.

Physical Data

Materials	Product area	316L (UNS S31603), PEEK*
	Non-product area	304 (UNS S30400), POM
	Sealing	EPDM*
Surface finish	Product contact surfaces	32 Ra
	Non-product contact parts	64 Ra
Temperature	Max. working temperature	203°F
	Max. ambient temperature	302°F

* FDA compliance 21CFR§177

Options – Materials

A. Hastelloy C22 product contact part only

B. Alternative sealing component material, FPM*, FFKM*

C. Positioning sensors, which generate digital signals at the fully retracted or fully extended positions

D. 3.1. certificate for metallic parts available upon request

* FDA compliance 21CFR§177
