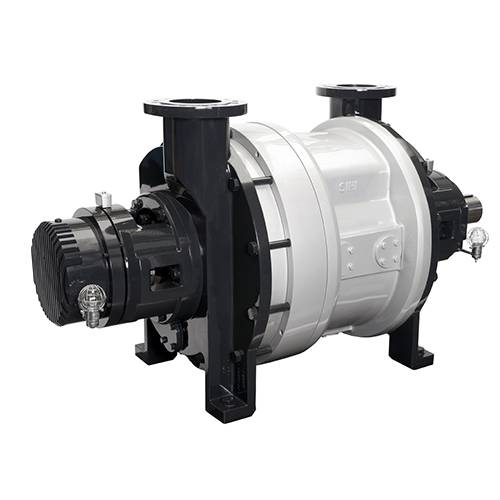

Efficient KPH Liquid Ring Compressor Pump

KPH Liquid Ring Compressor Pump Applications:

Handling and compressing of dry and humid gases. Entrained liquid can be handled during normal duty. The compressors are applied in all fields where a compression over pressure of up to 1.5 bar has to be created by robust compressors and only a small increase in temperature is admissible during compression. Fields of application are the plastics industry (recovery of process gases as vinyl chloride), the petrochemical industry(compression of combustible gases as gasoline vapors or hydrogen), the transport of gases in general and many more.

Benefit:

• Low noise and nearly free from vibration
• Wide choice of material, therefore applicable nearly anywhere
• Incorporated central drain
• No metallic contact of the rotating parts
• Full API 681 compliance
• Pumping of nearly all gases and vapours
• Non polluting due to a nearly isothermal compression
• Oil-free, as no lubrication in the working chamber
• Additional liquid can be handled with the gas flow
• Easy maintenance and reliable operation

Technical Data:

• API 681
• NACE MR0175 / MR0103
• NDT acc. ASME
• Flows to 3400 m³/h (2000 CFM)
• Pressures to 12 barg (174 psig)
• Temperatures to 100°C (212 °F)
• Hydraulic overpressure test 22,5 barg (326 psig)
• Service liquid max. admissible temperature 80°C (183 °F)

Size Range: From DN50 (2 in) to DN200 (8 in)

Related Industries

• Chemicals
  • Basic (Organic & Inorganic)
  • Specialty (Fine & Consumer)
  • Pharmaceutical
  • Petrochemicals

• Oil & Gas
  • Midstream Transportation
  • Downstream Processing

• General Industries
  • Pulp & Paper
  • Steel & Primary Metals
  • Other Industries
