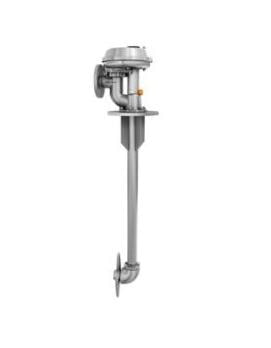

Gunclean Toftejorg i-40 D
The Gunclean Toftejorg i40 D is second generation dual nozzle tank cleaning machine. It is designed for use in fixed installations aboard chemical and product tankers as well as offshore applications.
Related Industries:
Marine and transportation, Oil and gas
Alfa Laval’s Gunclean Toftejorg i40 D is a high-impact, tank cleaning machine with dual nozzles. Its reliable operation and wear-resistant design make it suitable for use in all types of tank cleaning applications. Developed to meet the toughest tank cleaning requirements, it features a hysteresis clutch with built-in speed adjustment.
This innovative clutch construction is a substantial improvement over standard magnetic clutches, as it eliminates both slippage and the leakage risk of a speed adjustment shaft. In combination with optimized design and new, wear-resistant materials, it makes the Gunclean Toftejorg i40 D a simple and reliable choice for cost-effective operation.
A flow of cleaning media or product is used to drive a turbine connected to the Gunclean Toftejorg i40 D gear unit. Rotation speed can be adjusted during operation, thus making it possible to optimize the cleaning cycle.
In the first cycle, the nozzles lay out a coarse pattern on the tank surface. The following cycles make the pattern gradually more dense until a full pattern is reached after 4 cycles.
 |  |
Course pattern after 1 cleaning cycle | Dense pattern after 4 cleaning cycles |
Unique hysteresis clutch
Use of a hysteresis clutch on the Gunclean Toftejorg i40 D means there is no need for the conventional configuration with a speed adjustment shaft at the turbine. This does away with shaft penetration at this key point, eliminating a key location for potential seal leaks and cross-contamination problems.
The unique clutch used on this model compromises a number of strong magnets and a hysteresis plate. Unlike a standard magnetic clutch in which two opposing magnets must be synchronized, this type does not suffer from slippage, thus eliminating false starts. The clutch also works as a soft starter, making sure the tank cleaning machine always begins operating as intended.
Nozzle rotation speed
The rotation speed of the nozzles is preset from our factory to a speed which is applicable for most cleaning operations. The rotation speed is very easy changed by adjusting a magnet which serves as a brake. The distance between the magnet and the hysteresis plate is simply increased or decreased in order to change the speed. Access to the magnet is attained by removing the cover of the gearbox
