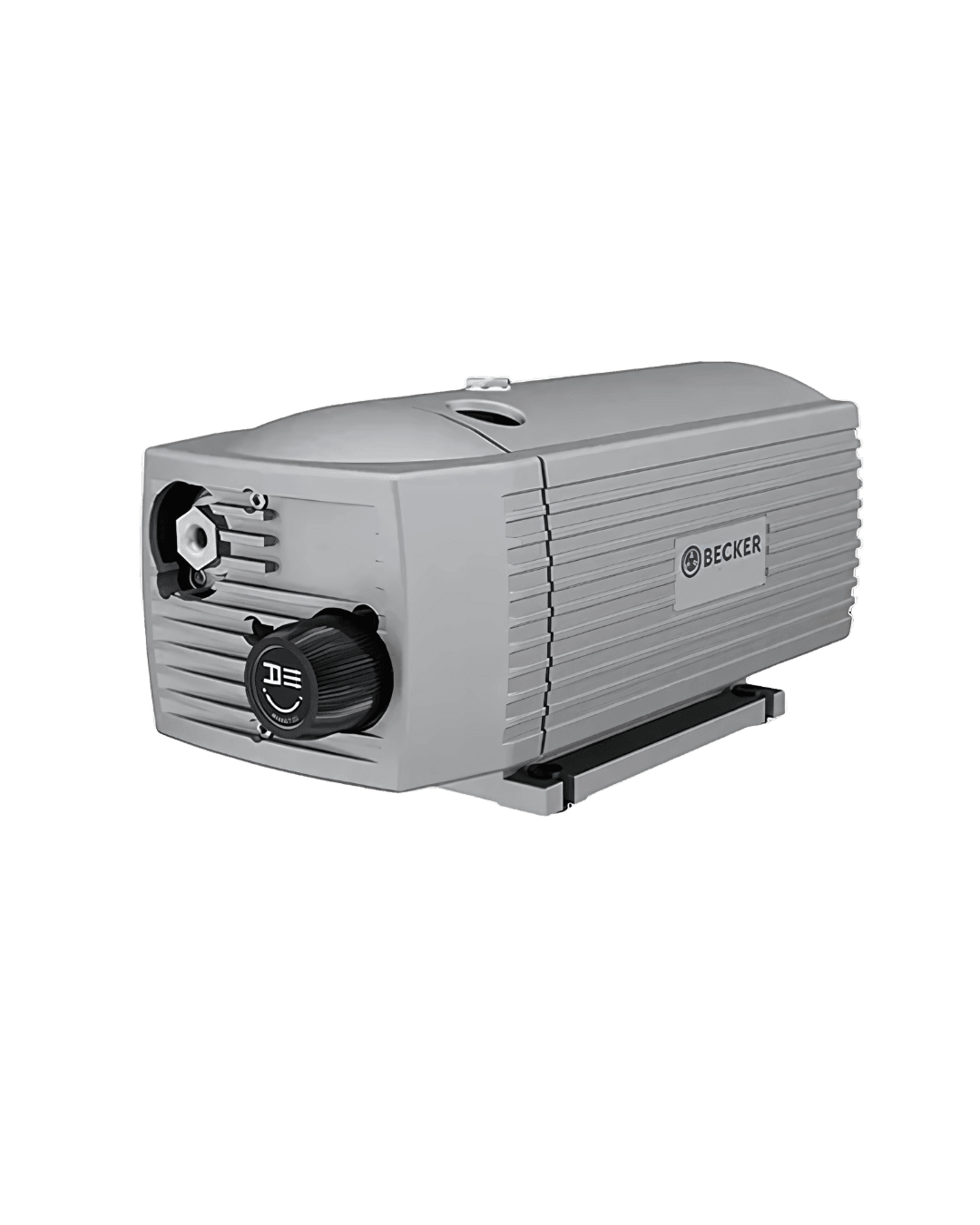

Becker DT series compressors are dry-running displacement pumps that operate at low pressures and are designed to work continuously at any pressure level, from open flow to +1.0 bar. The DT series oil-free rotary vane pumps, built specifically for Becker pumps, use self-lubricating graphite composite vanes. There is no need to change the oil, and minimal maintenance is required.
Each pump in the DT series comes as standard with:
- Large, integrated inlet filter.
- A pressure-regulating valve
- Vibration isolators
DT Series Rotary Vane Compressors Applications
Becker offers vacuum pumps, compressors and combined pressure/vacuum pumps for various industries, including the printing and paper industry, environmental industries, general mechanical engineering and construction. These pumps are suitable for various processes such as pre-press, sheet fed, digital presses, post-press, sparging, wastewater treatment, aeration, conveying, transporting, fixing, lifting, handling, drying and cooling. They are also suitable for the construction industry, turning air into power and withstand high demands. Becker’s vacuum pumps and compressors are ideal for pneumatic conveying, blowing & injecting and other processes. They are suitable for transferring powders, granules, flakes and other small, dry, low bulk density products. They are also used for aeration of waste water, blast air for printing, wine presses and drainage system reliners.
Features :
- 100% dry-running operation.
- Quiet operation.
- Long vane life.
- Air-cooled.
- Single shaft direct drive.
- Compact design.
- Variety of motors available.
- Low operation and maintenance costs.
- No cycling times.
- Small footprint.
- Fast, easy on-site service.
Product information / specifications
| | Volume flow 50/60Hz | Pressure relative 50/60Hz | Power 50/60Hz |
|---|
| DT 4.2 | 1.9/2.3 m³/h | +0.6/+0.6 bar | 0.09/1.105 kW |
| DT 4.4 | 4.2/4.9 m³/h | +1.0/+1.0 bar | 0.18/0.22 kW |
| DT 4.6/0-61 | 5.7/6.4 m³/h | +0.5/+0.5 bar | 0.18/0.22 kW |
| DT 4.8 | 8/9.5 m³/h | +1.0/+1.0 bar | 0.37/0.44 kW |
| DT 4.10 | 10/12 m³/h | +1.0/+1.0 bar | 0.37/0.45 kW |
| DT 4.16 | 16/19 m³/h | +1.0/+1.0 bar | 0.55/0.7 kW |
| DT 4.25 K | 25/30 m³/h | +1.0/+1.0 bar | 1.1/1.3 kW |
| DT 4.40 K | 40/48 m³/h | +1.0/+1.0 bar | 1.85/2.2 kW |
DT series rotary vane compressors data sheet
Dt series rotary vane compressors operating instructions
Enhance your operations with the DT Series Rotary Vane Compressors. Experience oil-free, high-performance air compression for various applications. Reach out today to find the right solution!
