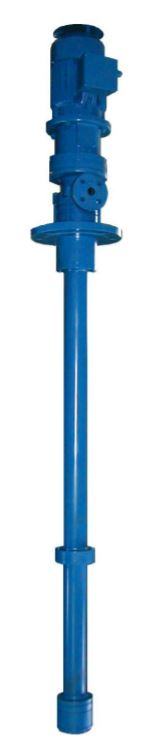

The CEB side channel units are a low noise design of combination pump. They are ideal for pumping liquids that are stored at their boiling point, have a degree of entrained gas, or very low NPSH conditions. The vertical tank pump has been designed in order to enable retro-fitting into most common tanks. Moreover, the dimensions are such that the unit can be used to replace submersible designs of pump. Although the pump can be supplied in other lengths, the standard size is between 1.3 and 3.0 m.
CEB Side Channel Pump Applications:
Vertical, extended tank pump essentially for handling liquids that are either boiling or stored at their vapour pressure. Particularly suited to LPG car filling stations. One of the primary features of this side-channel type of pump is the special suction impeller that requires extremely low levels of NPSH. CEB pumps have been specifically designed for use with liquefied petroleum gas (LPG) and other liquefied gases.
Technical Data:
Volume flow: up to 65 l/min
Differential pressure: up to 15 bar
Speed: max. 2,900 rpm
Temperature: max. 60 °C
Casing pressure: up to 40 bar
Shaft seals: magnetic drive
Materials: nodular iron
