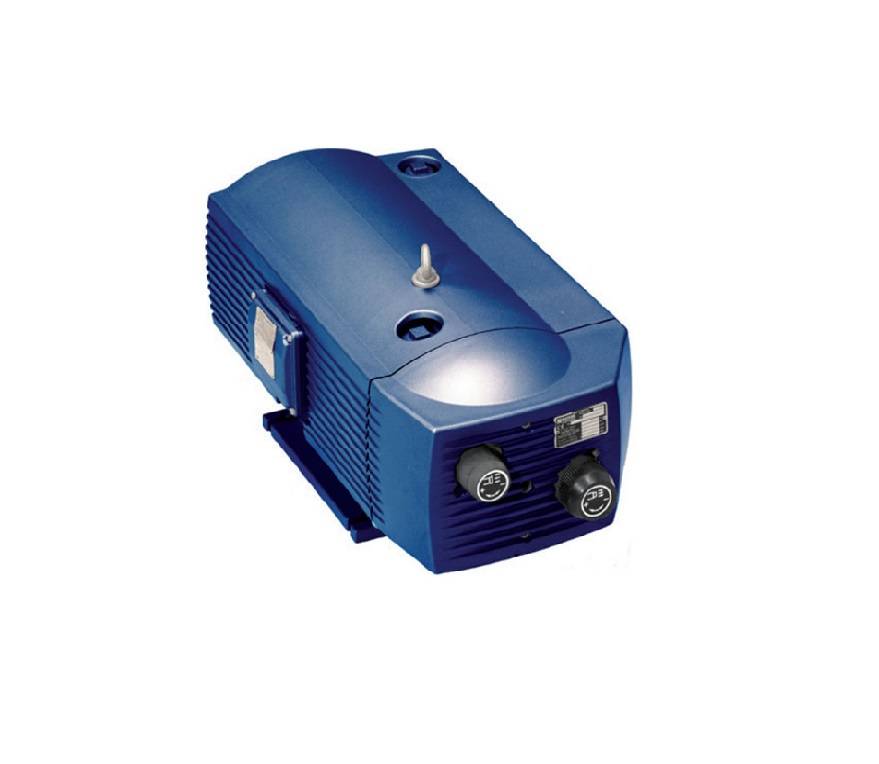

Becker X4 Series Combined Vacuum and Pressure Pumps
100% Oil-less Rotary Vane Combined Pressure and Vacuum Pumps
ABS offers the simplicity of design with only one shaft and direct drive produces robust, long-lasting pressure/vacuum generators compressors with low maintenance and running costs. These pressure/vacuum generators operate completely oil-free; the individual chambers are separated by long-life vanes.
Capacity: 10 m³/h up to 500m³/h
Pressure: +600 mbar / Vacuum: -600 mbar
Our direct-drive combined pressure/vacuum pumps rule out the need to purchase separate pumps for vacuum and pressure for the same application.
Requiring minimal maintenance, these quiet combined pumps allow the operator to change vacuum flow and pressure flow independently with the ability to adjust either without loss of performance.
Other features include separate inlet filters for each port and as standard vacuum and pressure regulators.
Models:
- X4 Series
- T Series
- DVT Series
- DXT 3
- DVTLF 2 Series
Becker pioneered the development of combined pressure and vacuum pumps when it developed a device called the secondary suction. It is a secondary inlet port that allows a continuous flow of inlet air and lets the compressor operate independently of the vacuum pump. All Becker combined pumps include these designs:
Already featuring integrated intake filter and control valve, these pressure/vacuum generators can be fitted with other accessories without a problem. The blast air cooler, which is also integrated, guarantees a very low blast air temperature. The compact cover ensures low noise and heat emission. The combined pressure/vacuum generators are additionally equipped with a second intake. This provides the capability of making minor adjustments to the suction and pressure side as well as to high blast air volumes. By way of option, the second intake can also be used as a second low-vacuum suction air supply. Optional corrosion protection also makes these vacuum pumps suitable for extracting moist air.
Series X: Becker Innovation with Top Warranty
Pneumatic technology of the Becker brand is worldwide a synonym for precisely dosed, smooth industrial processes in many industrial sectors. For application areas with high requirements, as they are common for example in the electronics industries, Becker offers the vacuum pump product line: the series X.
With this special development [suitable for the application], Becker extends its popular T/DVT/DVTLF product range by the models X/DVX/DVXLF.
Equipped with special developed vanes, these oil-free rotary vane pumps distinguish themselves by high abrasion resistance and with that extremely long service lives. And since no dust develops where there is virtually no wear, the devices of the series X are perfectly suited for precision processes under clean room conditions.
• quick, clean, quiet
• 100% oil-free
• vibration stable
• wear resistant
• energy saving
• long-life reliable
• at least 20,000 maintenance-free operating hours
An additional reliability plus is the on-site service by Becker in case of need. Exchange installations and the downtimes associated with that are no longer an issue anymore.
