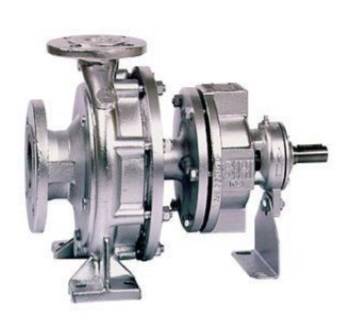

Horizontal, single-stage volute casing pumps with dimensions and nominal ratings to EN 733 / DIN 24255 in back pull out design. The series ZHN has especially designed for the trouble free handling of hot water up to 180 °C. The back pull out design permits the removal of the complete bearing unit towards the drive end without removing the pump casing from the pipe work. If a spacer coupling is installed it is also unnecessary to disconnect the motor.
The pumping of hot water makes high demands on the pump design. Safe operation is influenced, to a high degree, by the mechanical seal. Therefore the parameters of pressure, temperature and sliding speed at the mechanical seal are optimised so that the service life is considerably increased.
ABS offers SIHI’s Heat Transfer pumps for Hot Water and Hot Oil:
for Hot Water:
for Hot Oil:
