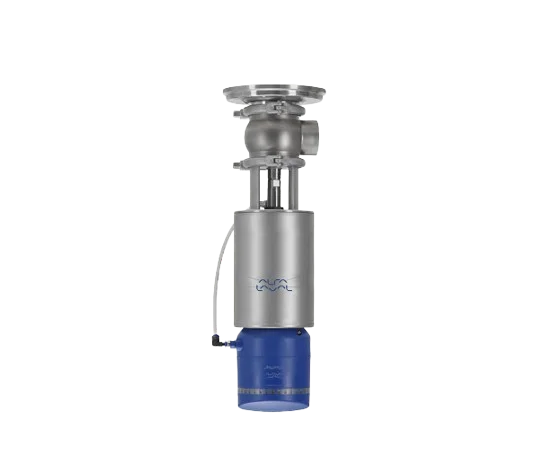

The Alfa Laval Unique SSV Tank Outlet is a versatile, reliable, pneumatic single seat valve with a single contact surface between the plug and the seat to minimize the risk of contamination. Its compact, modular and hygienic design meets the highest process demands in terms of hygiene and safety.
Built on the well-proven Alfa Laval Unique SSV platform it is designed for installations that open product flow into the tank (reverse-acting version0 or close product flow from the tank (standard version). Few moving parts ensure easy maintenance, high reliability and low total cost of ownership. A wide range of optional features enables customization to specific process requirements. The Unique SSV Tank Outlet is designed for use as a shut-off valve when opening product flow into a tank in hygienic applications across the dairy, food, beverage, brewery and many other industries.
Application
The Unique SSV Tank Outlet is designed for use as a shut-off valve when closing product flow from a tank or as a reverse-acting valve when opening product flow into a tank in hygienic applications across the dairy, food, beverage and brewery and many other industries.
Standard Design
The Alfa Laval Unique SSV Tank Outlet valve is available in a one-body configuration with plugs, actuator, clamp rings and up to two ports.
To ensure flexibility, the valve seals are optimized for durability and long service life through a defined compression design. The actuator is connected to the valve body using yoke, and all components are assembled with clamp rings.
An optional tank flange is available. When supplied, it is welded directly into the tank. Upon request, it can be supplied with TUV approval AD 2000 and inspection certificate 3.1 according to EN10204. The valve can also be fitted with the Alfa Laval ThinkTop V50 and V70 for sensing and control of the valve. Through the Alfa Laval Anytime configurator, it is easy to customize to meet virtually any process requirement.
Options
- Fully maintainable actuator
- High-pressure actuator
- Product wetted seals in HBNR or FPM
- TR2 plug seal in PTFE for special applications
- Valve sensing and control devices, incl. ThinkTop, ThinkTop Basic and IndiTop
- Fittings in accordance with required standard
- External surface finish 3-A bright
Versatile and reliable single seat valve
Alfa Laval Unique single seat valves (SSVs) are robust and reliable and versatile. Modularity provides cost-effective and nearly endless possibilities for purpose-built seat valves that meet high standards of hygiene and aseptic compatibility. Configure the Unique SSV valve bodies, plugs and actuators to meet virtually any requirement.
Superior valve process safety
The Unique SSV range is built on a proven modular platform used on more than a million valves in service worldwide. Pressed from a single stainless steel disc, the valve body is extremely strong and durable, thus ensuring production safety. The enhanced performance of the actuator makes operation safer and more efficient.
Exceptional valve hygiene
The Unique SSV range is engineered to provide excellent hygiene and cleanability. With a fine surface finish, the smooth, weld-free valve body eliminates crevices that can trap bacteria. The design of the plug supports enhanced cleaning-in-place capabilities, and a double-acting lip seal that minimizes any risk of cross contamination.
Alfa Laval Unique SSV valves meet most hygienic standards requested in the dairy, food and beverage, and personal care industries. The Unique SSV range is EHEDG-certified and authorized to carry the 3-A symbol. The range also provides full traceability in compliance with the EU Food Regulation 1935/2004.
Greater valve durability
To ensure high sealing quality, the Unique SSV range features defined compression of the O-rings with metal-to-metal contact between plug and seat. This significantly reduces wear and extends valve service life. The standard Unique SSV is supplied with a semi-maintainable actuator that has a five-year warranty.
Low total cost of ownership
Thanks to its straightforward, reliable design, the Unique SSV range provides long service life, reduced product loss, greater product safety and more processing uptime. More effective CIP procedure with reduced cleaning cycles and, subsequently, the reduced use of cleaning fluids, water and utilities also contribute to the Unique SSV’s low total cost of ownership.
Operating principle
The Alfa Laval Unique SSV Tank Outlet Valve is operated by means of compressed air from a remote location. The valve can be controlled using an Alfa Laval ThinkTop®. The valve generally has two working ports for air supply in and for air supply; for changeover valves, a third port is required.
