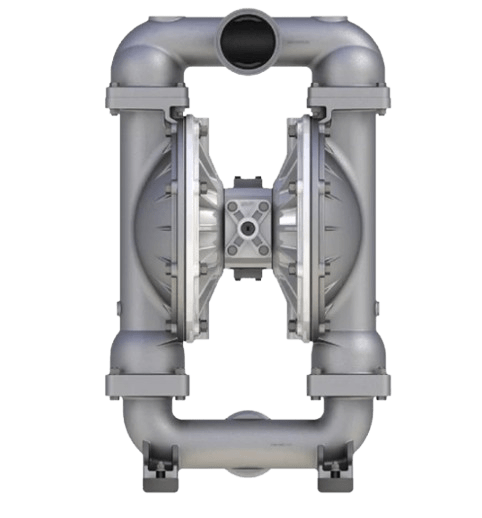

3″ T30 Metallic Sanitary Flap Valve AODD Pump

Sandpiper’s T30 Metallic Sanitary Flap Valve is a part of a line of sanitary flap valve pumps with FDA compliant materials to handle fluids that require specific handling. This line of AODD Pumps is best suited for food and beverage processing, pharmaceutical and cosmetics industry applications and any other sanitary applications

T30 Metallic Sanitary Flap Valve Application

Benefit:

Compliance with food-contacting materials requirements
- 316 stainless steel wetted components
- FDA Santoprene, FDA Nitrile and PTFE diaphragms, check balls and seats
Bolted construction for more robust, leak-free performances than typical clamped-construction food pumps
Class-leading maximum flow rate of 285 gpm (1,079 lpm)
Best-in-class air efficiency – uses up to 56% less air than competitive models
4 inch Tri-Clamp connections
Option of either stainless steel or white epoxy-coated aluminum non-wetted components for compatibility with washdown chemicals
An externally serviceable air distribution system
Simple design that is fully interchangeable, repairable and inline-serviceable

Port Size	4 inches Tri-Clamp
Capacity	0 to 285 gpm (1079 lpm)
Air Distribution Valve	No-lube, no-stall design
Solids-Handling	Up to .38 inches (9.65 mm)
Heads Up To	125 psi or 289 feet of water (8.6 bar or 88 meters)
Displacement/Stroke	1.00 gallons (3.79 liters)
Max Operating Pressure	125 psi (8.6 bar)
Shipping Weight	Stainless Steel: 194 lbs (87kg)
